Solutions
We deliver modular, integral reactors sized from 30–165 MW. Each unit is designed for natural‑circulation operation at set‑point, high availability (≥95%), and rapid site integration for data‑center and industrial customers.
Integral primary system
Core, chimney, separators and pressurization functions live inside the vessel to cut complexity and leak paths.
Boiling in the reactor chimney
This eliminates external steam generators and a separate pressurizer, simplifying the plant and enabling passive operation.
Underground water pool
The vessel sits in a below‑grade pool that provides long grace times for decay‑heat removal and reduces grading cost.
Standard PWR fuel
Use of commercial fuel lowers cost and supply risk while preserving licensing familiarity.
Set‑point booster pump
A small, non‑nuclear‑grade pump assists only near set‑point to avoid instabilities and enable load‑follow.
Quick‑opening closure
Bandlock‑style clamp rings minimize outage duration for refueling and inspection.

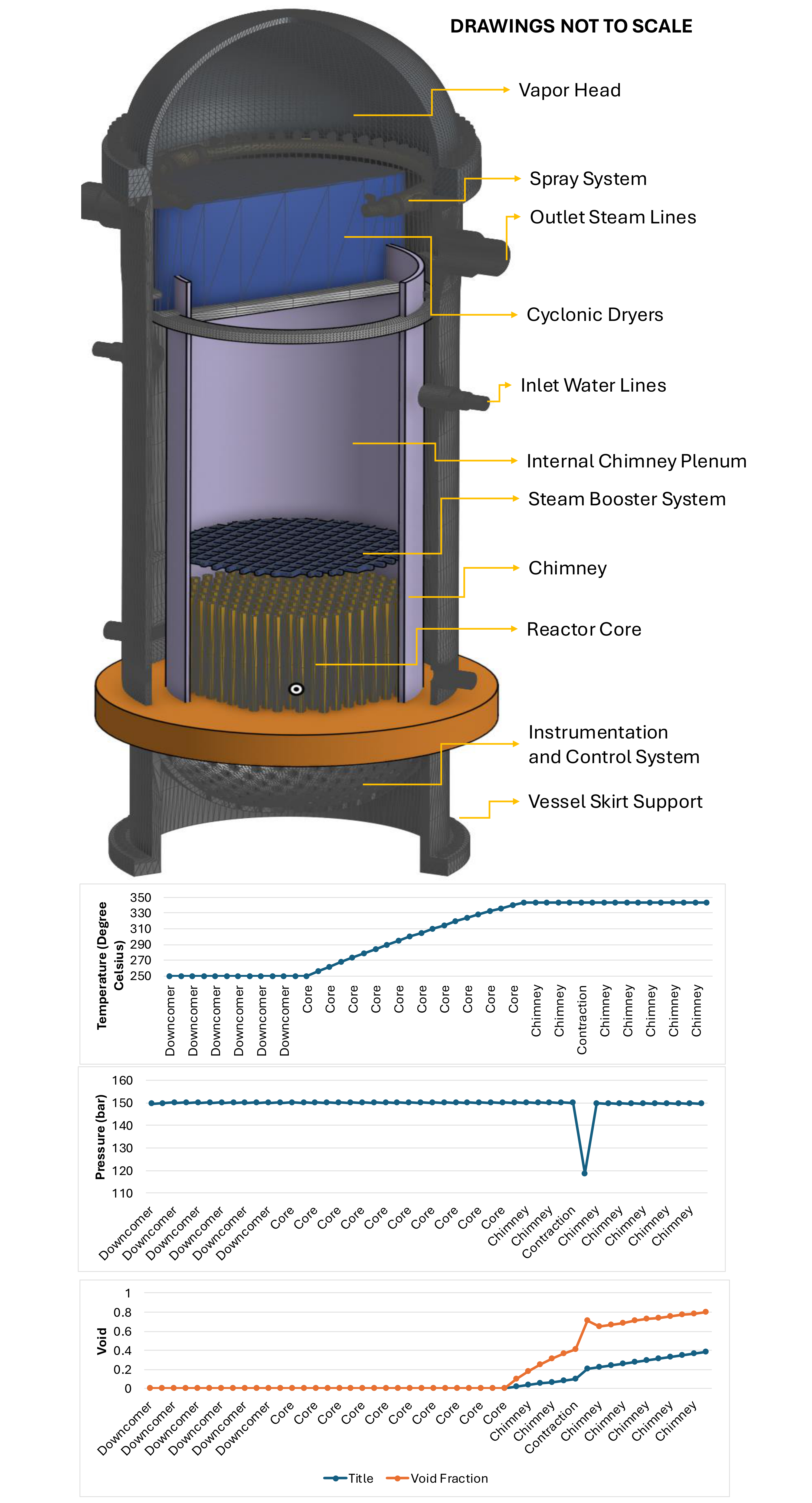

KADMOS Design — one‑pager
Open PDF
